Description
| Motor configuration | 4 motors, for twin axle caravans |
| Model | Powrtouch Evolution Manual AWD |
| Roller Engagement | Manual engagement |
| Operational Voltage | 12 Volt DC |
| Average Current Consumption | 20 A |
| Max Current Consumption |
80 A |
| Speed | 28 cm per sec. |
| Weight | approx. 60kg |
| Permissible Overall Weight | 2800 kg |
| POW 15% grad | 2300kg |
| POW 20% grad | 2100kg |
| POW on 25% Gradient |
1800 kg |
| Power Source (caravan leisure battery) |
12V 85Ah |
| Guarantee | 5yrs |

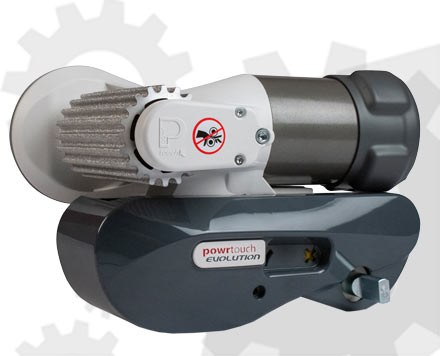

The Powrtouch Evolution™ AWD Manual caravan movers represents very best innovations for all wheel drive of twin axle caravans. Double the power for the ultimate in manoeuvrability for twin axle caravans.
The Evolution AWD delivers the ultimate power and control. Designed in the UK, the Evolution Manual rollers are engaged with a siomple wind-on mechanism. The AWD feautres powerful 4-pole motors and ultra efficient drive train. And is backed by PowrTouch’s five year no quibble guarantee.
All movements are controlled by the remote handset. One press of a buttons on the remote to move in any direction. All four caravan tyres are driven by lightweight extruded aluminium rollers with a 70mm diameter to provide exceptional grip and durability.
Fitting the Powrtouch Evolution AWD to your caravan is simple and does NOT require any welding or drilling of the chassis.
The soft start feature allows the caravan to be manoeuvred accurately before full speed is achieved. Braking is fully automatic and occurs immediately your finger is removed from the active button.
The Powrtouch Evolution AWD also boasts the FM Electronics System which includes variable speed control. The control system allows the mover to be driven at 100% speed, 75%, 50% or 25% – perfect for even more precise manouevring.
