Bullfinch BBQ Outlet Point – Black

Description

Gas point (BBQ point) – Black – ideal for supplying barbecues, cooking appliances, patio heaters and other appliances for LPG (propane and butane) from the unit’s existing supply. Complete with Plug in tail connector and fixing screws.

Ideal for supplying

barbecues (BBQ)
cooking appliances
patio heaters and
other appliances
for LPG (propane and butane) from the unit’s existing supply.

Colour – black

Note the following features:

complete with plug in tail connector and fixing screws
good security – no connector, no flow
push and turn activation
innovative, attractive design
high quality for a long reliable life
compact
lightweight
easy to fit – requires 60mm cutter
well styled
high flow rate
comes with angled inlet connector as shown
Nett weight with connector – 515g
Conforms to BS EN 331 and BS EN 1949 and made under a certified ISO9001 system
Gas inlet is suitable for 8mm tube (nut and olive provided) (thread on nut is 1/4in BSP)

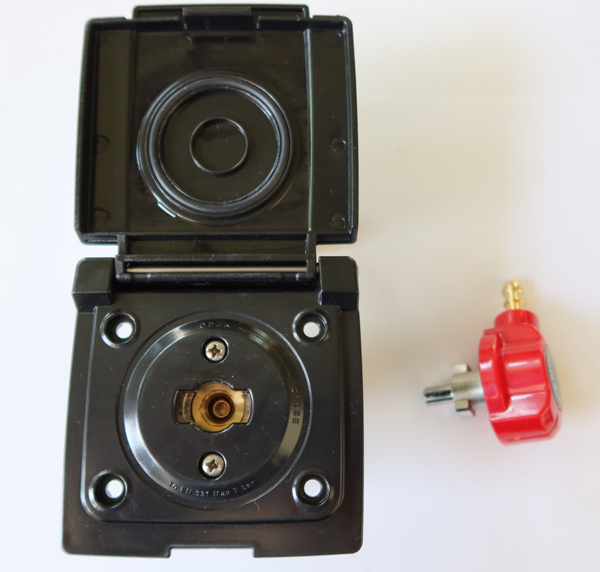

The Gas point comes complete with a Plug in tail connector for connecting onto the hose from the appliance. Inserting the tail connector and turning, locks it in place and allows the gas to flow.

The Gas Point comes complete with fitting instructions. It should be installed by a competent Gas Safe (was CORGI) registered installer.

It is also supplied with 4 fixing screws.

You will need a 60mm cutter to create orifice.

The metal pipe for the gas inlet needs to be 8mm.

The hose for the Plug in tail connector needs to be 8mm bore LPG hose – our number 1319. You will also need suitable hose clips.

Please note a gas cylinder should never be connected to the Gas point from the outside of the caravan or motor home.

Technical Details
Working pressure – 7 bar (max)
Conforms to BS EN 331 and BS EN 1949 and made under a certified ISO9001 system
Corrosion-resistant materials, LPG compatible
Plastic parts made of high quality materials with long-term UV resistance
Total sealing between device and wall of prefabricated structure
Total sealing between cap and connection device
Double gasket for optimal long-term safety
Dimensions – 105 x 110 x 85 (deep) mm
When fitted – plastic protrudes 20mm from wall when shut, 70mm when connector fitted, 120mm when flap horizontal
Body – Hot forged brass alloy CW617
Ball valve + flare – Chrome/nickel plated brass alloy CW614
Additional brass parts – Brass alloy CW614
Plastic unit and cap – Polycarbonate reinforced with glass fibre
Lever handle – ABS (Acrylonitrile Butadiene Styrene) – UV stable
Hinges, springs and screws – stainless steel
Rubber gaskets – NBR conforming to EN549 standard
Wall gaskets and cap gaskets – UV, ozone resistant EPDM
Ball valve seals: – PTFE
